Bitumen Mastic Pad

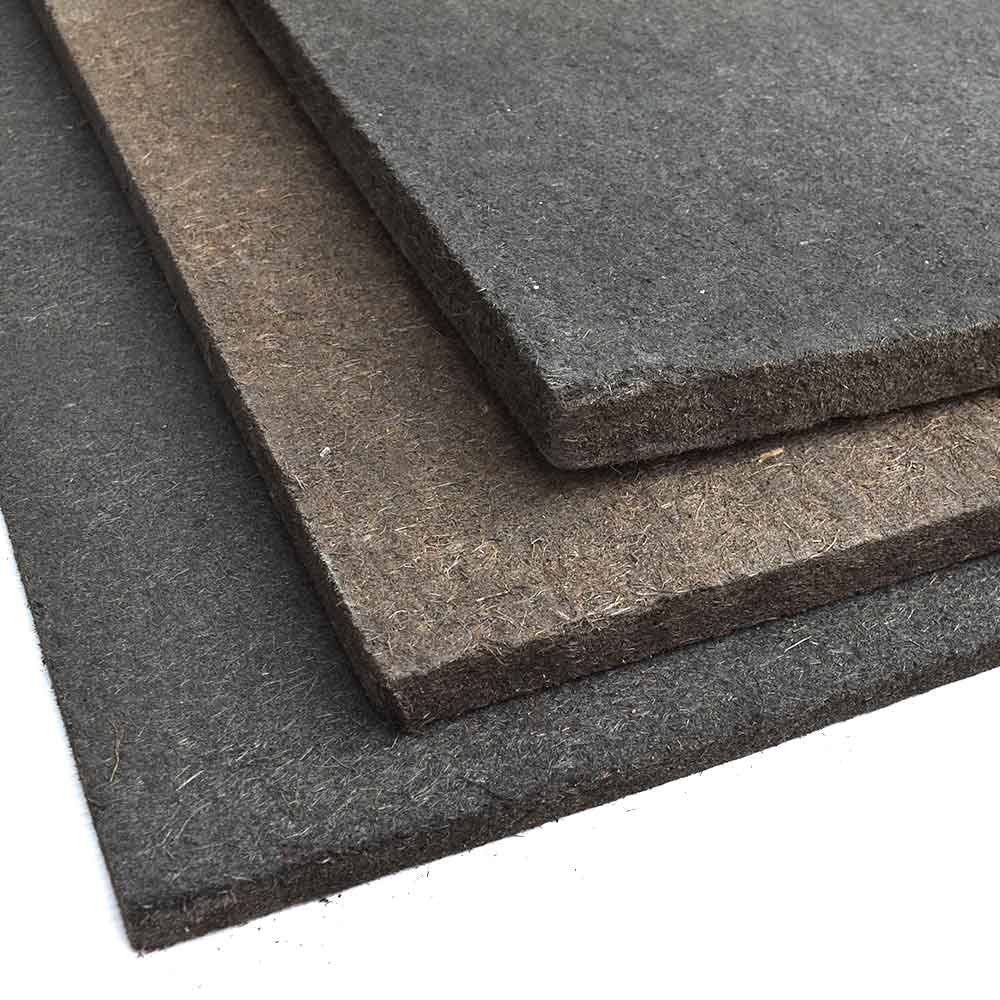

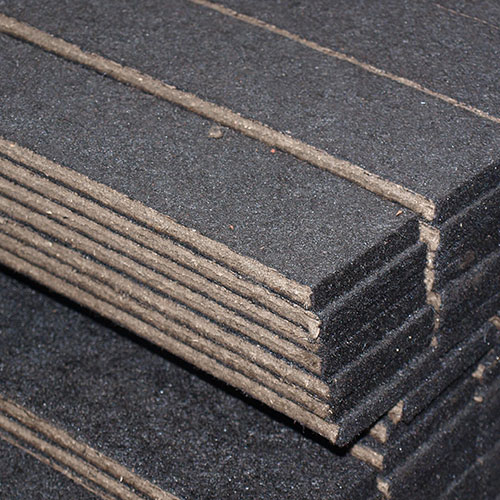

We Riddhi Infratech Solutions are the major distributor of JOLLY MASTIC PAD in Hyderabad. Jolly Bitumen Mastic Pad is processed from cane fiber & bitumen. The Combination of these raw materials are tested & proven to provide the best resilience to weathering cycle in concrete..

  • Jolly Mastic Board is made with swedish machinery & technology developed through years of intensive research.
  • It is available in a wide range of thicknesses & sizes.
  • It is an environmentally friendly product made from waste as opposed to the environment destroying thermocol/plastic expansion joint fillers.
  • The Board's compression and recovery characteristics conform to the American, Europen, British and Indian Standards.
  • It is the most economical product alternative to polyethylene in dry areas.
  • Jolly Bitumen Mastic Board confirms to the following required standards of expansion joint fillers:
  • ASTM- D. 1751
  • B.S. 6093
  • IS 1838



DURABILITY AND EASY HANDLING :

Jolly Bitumen Board is tough and maintains its thickness and surface finish under loading and stacking. Due to Bitumen Impregnation it resists absorption of water. This material withstands severe environmental conditions for very long periods of time.

COMPRESSION :

Jolly Bitumen Board when initially subjected to a load between 689 to 5171 kPa(or 100 to 750 PSi) in order to compress it by 50% of its original thickness, it shows a loss of not more than 0.1 to 0.2 % by weight. (Permitted : less than or equal to 3% by weight).

EXTRUSION : Jolly Bitumen Board when compressed to 50% of its thickness with 3 edges restrained, it shows an extrusion of not more than 1 to 2mm on its free edge. (Permitted : less than or equal to 6.4mm)

RECOVERY :

Jolly Bitumen Board when compressed to 50% of its thickness, it is observed that it recovers to 80-85% of its original thickness, within 10 minutes after the load is removed. Cane Fibre improves toughness and recovery properties. (Permitted : at least 70% or higher).

UNAFFECTED BY TEMPERATURE CHANGES :

Jolly Bitumen Board expansion joint filler holds its shape without appreciable dimension change when exposed to temperature extremes. It does not get soft at higher temperatures nor brittle at lower temperatures.

LOW MOISTURE ABSORPTION due to bitumen impregnation.

EXCELLENT CONCRETE BONDING : The rough textured surfaces of Jolly Bitulex provides a good bond between the expansion joint filler and poured concrete.

WEATHERING CYCLE Durable in all condition due to its Asphalt impregnates.

LOAD HANDLING ABILITY :

Jolly Bitumen Board compresses under the pressure and expands back quickly to its original shape showing good elastic property. Thus preventing the concrete from cracking.



APPLICATIONS:

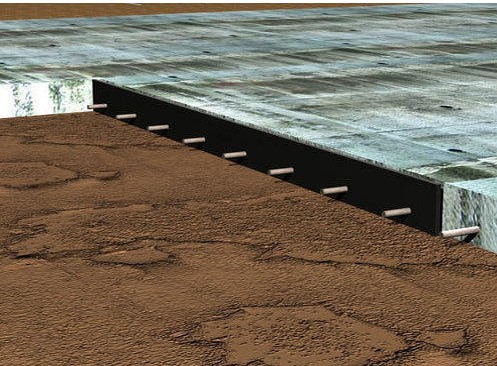

  • Expansion joint filler strips in all concrete traffic surfaces like highways, airport, runways and streets.
  • Expansion joint fillers in driveways, aprons, pavements, curbs, gutters and other concrete paving work.
  • Expansion joint fillers in reinforced concrete structures like piers, retaining walls, and lateral supports like abutments.

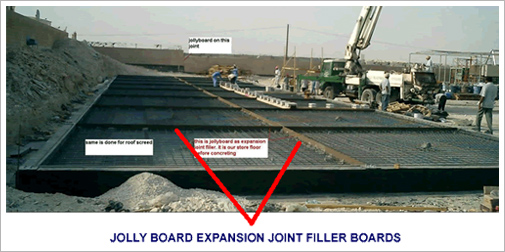

  • Expansion joint fillers are used against existing or between adjacent constructions and insets in concrete paving like drains, manholes, etc. Industrial Flooring.
  • Various other internal finishes, flat works and concrete floors according to the state of art and local regulations.
