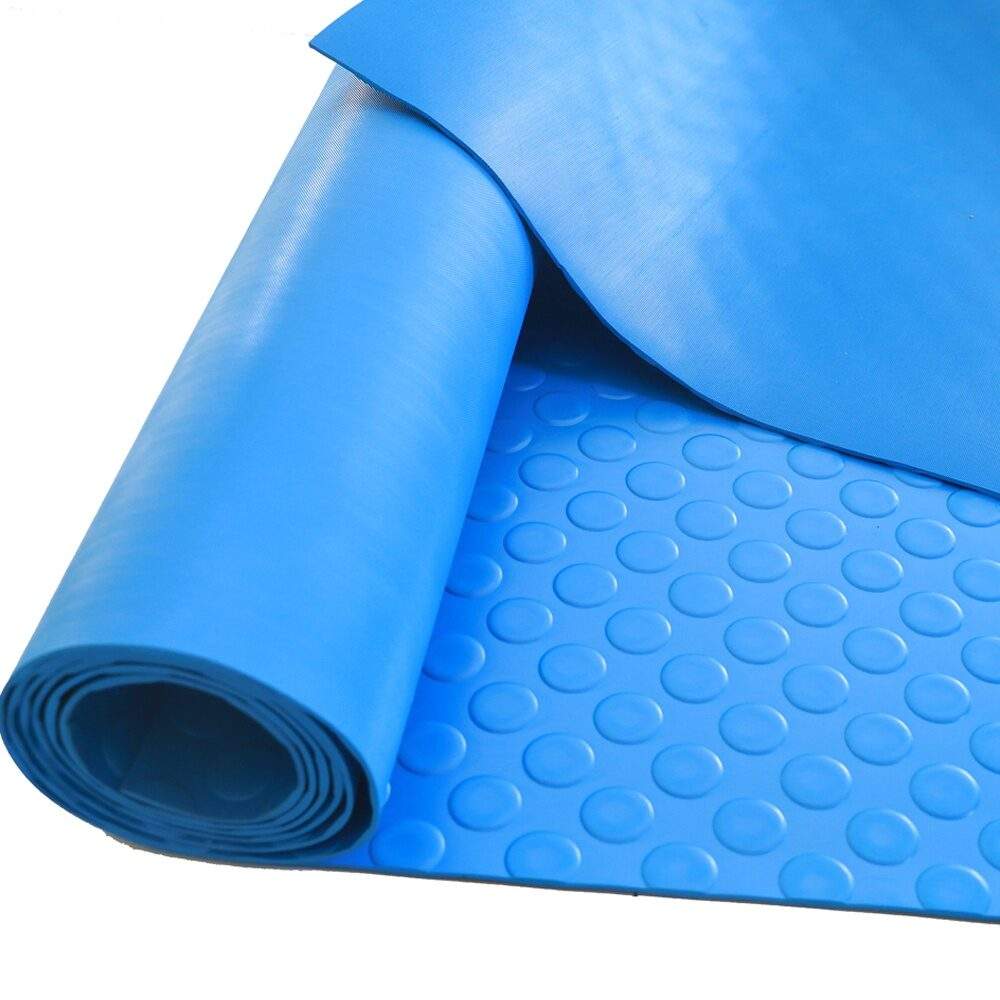

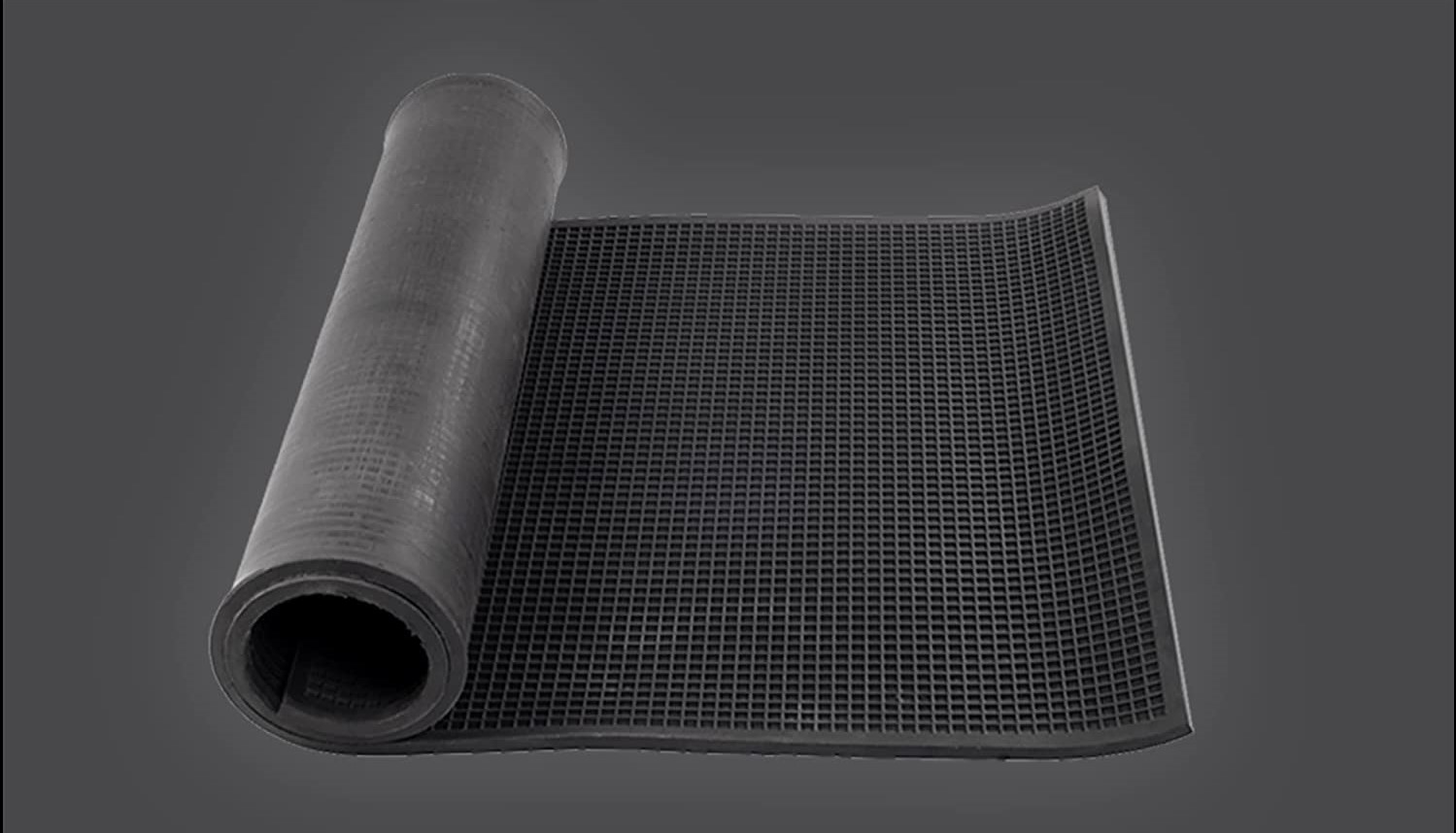

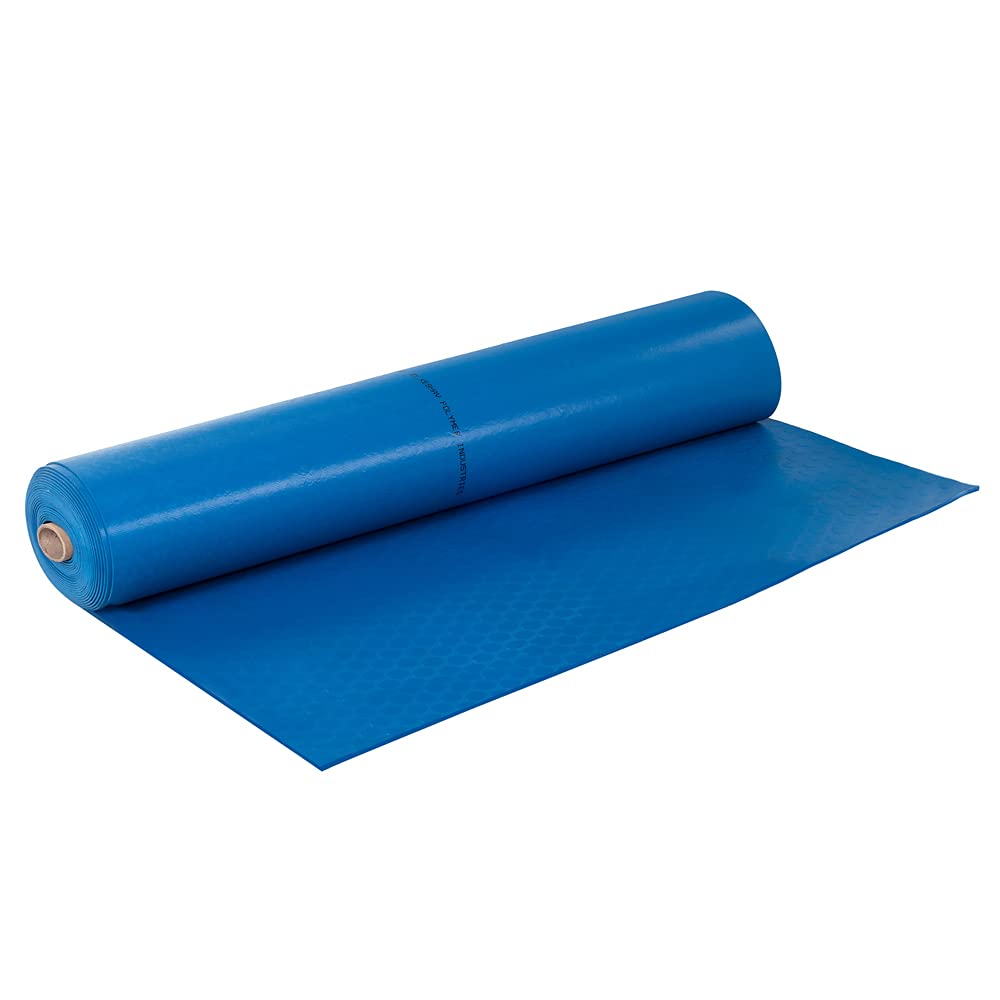

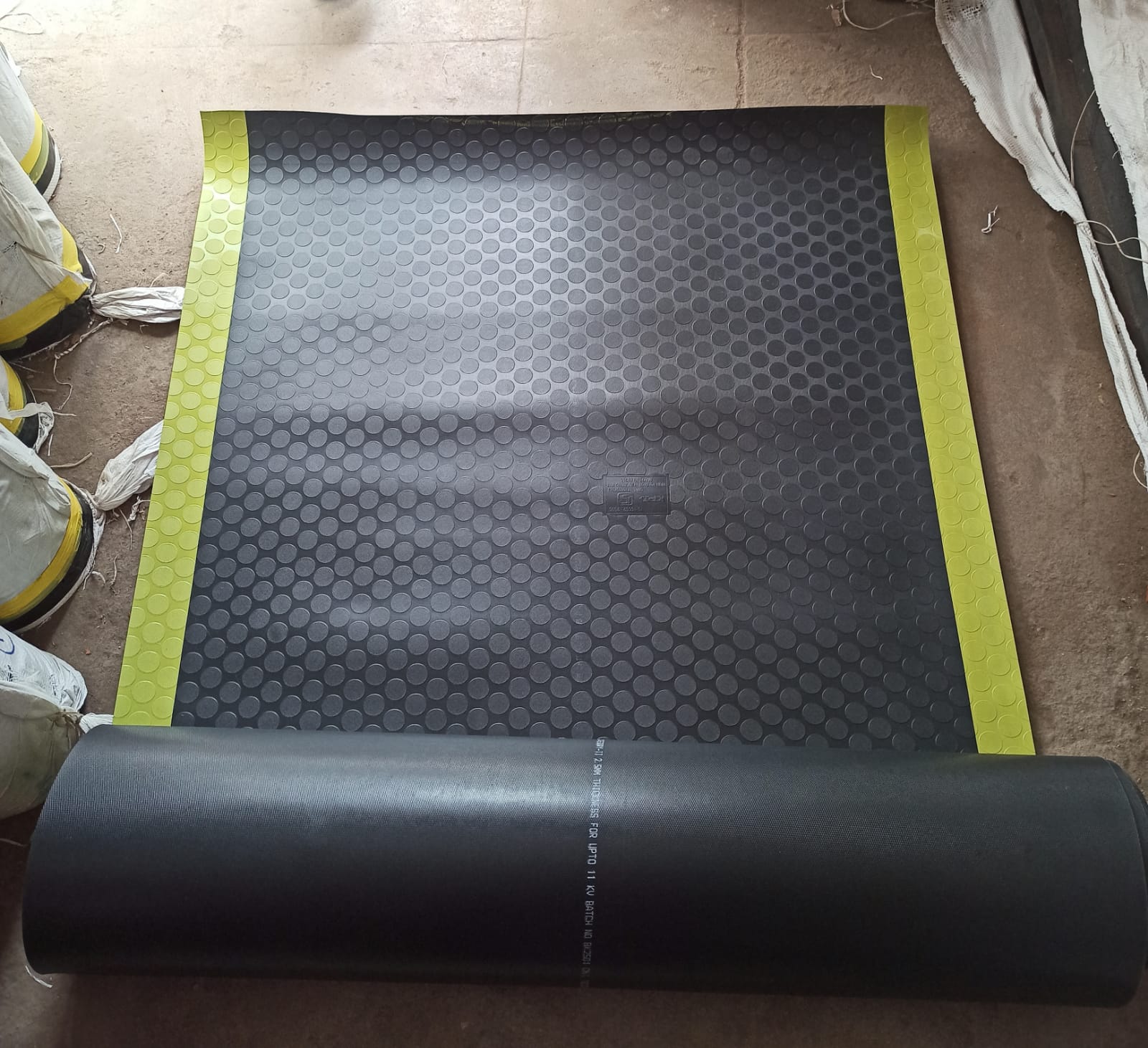

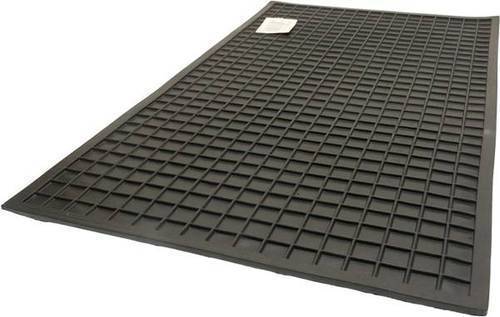

We, Riddhi Infratech Solutions are the leading supplier & dealer of Electrical Insulation mat. Electrical Insulation Mat is an important industrial material and highly used for safety and security purpose in small and large scale business sector. Electrical Insulating Mat for electrical purpose has different used in various applications like as power plants, high voltage panels, substation, HT and LT Labs and power transmission room. Insulating mats help to protect our worker and people from eclectic shock at high voltage of electrical areas. Panel rubber mat is manufactured to break the chain of electric current from flowing to the human body. Our electrical safety mat is acid, oil, ozone and fire-resistant.
Electrical insulating mat confirming to IS 15652-2006 is perfect mix of synthetic polymers. Electric mat is a type of anti static ground mat or floor mat that is made of various kinds of anti static devices especially designed to help in eliminating static electricity. Employees and professional who work under such environment that involves constant threat of electric shock. Electrical insulating mat assures safety of workmen with better and more secure infrastructure. The possibility of hazards caused by any form of leakages of current decreased.
Our Electrical insulating mat is manufactured with a blend of elastomers, PVC and natural rubber in proportion to achieve a premium quality product adhering to the set IS 15652 government standard. Our electrical panel mat comes with an anti-skid design in different colours with ISI mark on every meter. Additionally, with every supply of electrical insulating mat we offer a test certificate to pass safety audits.
ISI Marked IS: 15652 2006 is highly demanding electrical rubber insulating mat in India. IS 15652 is divided in three category like as Class A, Class B & Class C. IS 15652 electrical insulating mat is available in 1mt x 10mtr roll and 1mtr x 2mtr sheet form with 2mm, 2.5mm and 3mm thickness with various color like as Red, Black, Blue and Grey.
The major specification of electrical insulating mat IS 15652 Class A is 2.0mm thickness; 3.3kv max uses voltage, 10kv AC proof voltage, 30kv dielectric strength, 10ma maximum leakages current and many more. IS 15652: 2006 Class B electrical rubber mat is 2.5mm thickness, 11kv max uses voltage, 22kv AC proof Voltage, 45KV ac Die electric voltage and 10m A Maximum leakages current. IS 15652 2006 electrical insulating mat Class C is 3.0mm thickness, 33kv max use voltage, 36KV ac proof voltage, 65kv ac die electric strength and 10m A max leakages current.

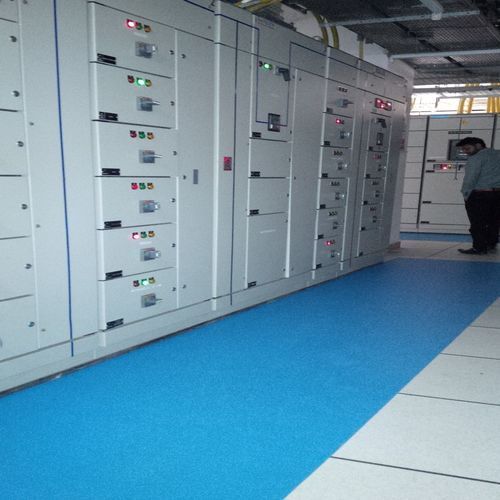

Proper security and safety are very essential to reducing accidents in the workplace. Electrical Insulation Mats are one of the safety tools that protect the workmen from high voltage electricity. Our Electrical Insulation Mats offer great security for workmen as well as increase the productivity of the company.
Electrical Insulation Mats used for the application of -
| Sl. No. | Class of Mat | Thickness(mm) | Tolerance(%) | ac (rms) kV | dc (rms) V |
| 1 | A | 2.00 | ± 10 | 3.3 | 240 |
| 2 | B | 2.50 | ± 10 | 11 | 240 |
| 3 | C | 3.00 | ± 10 | 33 | 240 |
| Sl. No. | Class of Mat | Thickness(mm) | Di-electric Strength ac (rms) kV | Proof Voltage ac (rms) kV |
| 1 | A | 2.00 | 30 | 10 |
| 2 | B | 2.50 | 45 | 22 |
| 3 | C | 3.00 | 65 | 36 |
Size & Thickness
Size & Thickness of Electrical Rubber Checkered Mat
