Swellable Water Bar

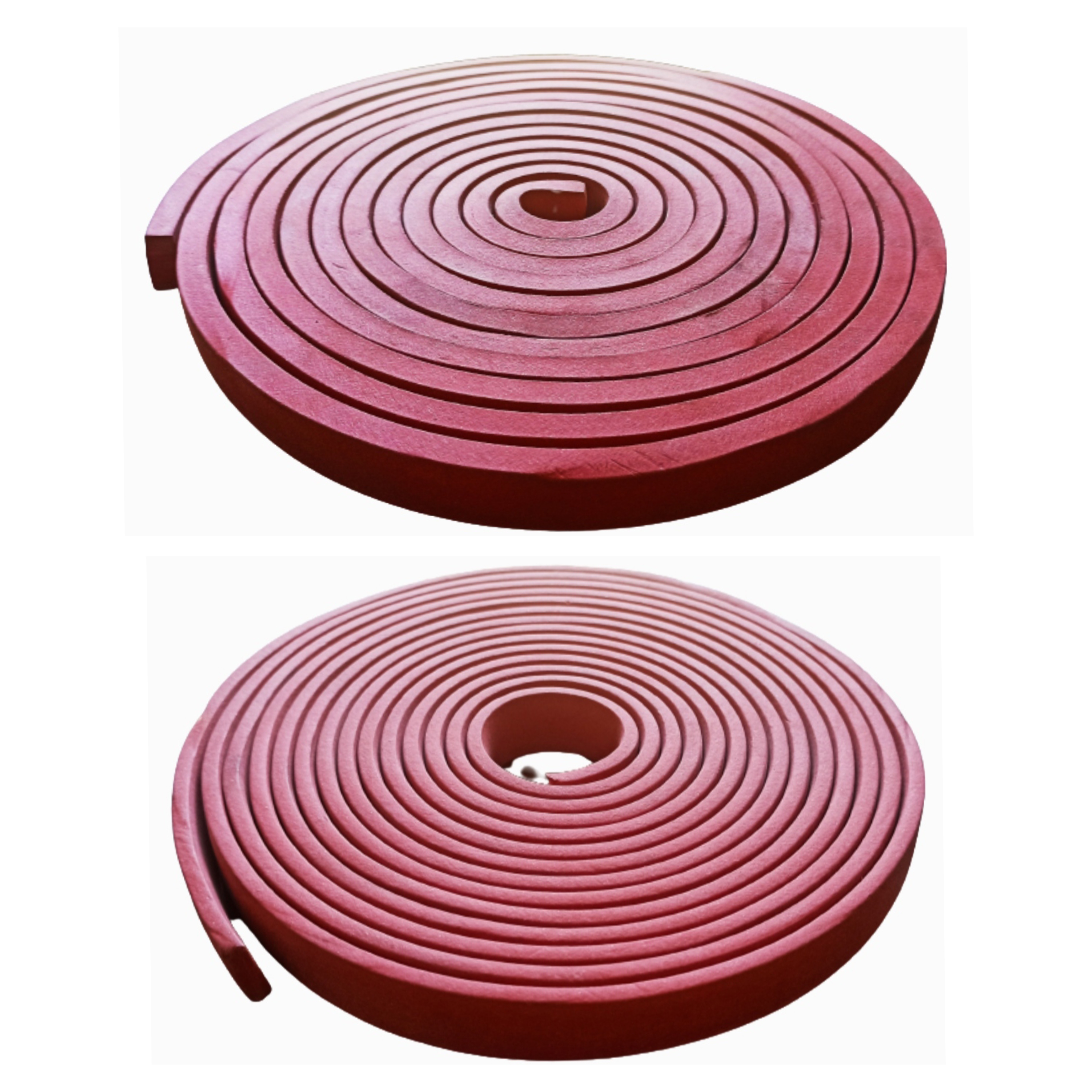

We Riddhi Infratech Solutions are the leading Manufacturer and Suppliers of Hydrophilic Swellable Water Bar. Swellable Bar is used for sealing of concrete construction joints, pre-cast concrete segments, proofing of shafts and pipe penetration subject to continuous or intermittent hydrostatic pressure. It swells in contact with water to seal the gaps and pores in a concrete joint. It can swell up to 450%. It is available in black and red colour with different sizes. Swellable Water Bar is an active sodium bentonite/butyl rubber-based water stop designed to stop water infiltration through the cast in place concrete construction joints by expanding upon contact with water to form a positive seal against the concrete. It also fills the cracks and pores on the concrete.



Usage of Swellable water stop

  • Used for concrete joints, and intersections of old and new concrete in the construction of pools, foundations, tunnels, manholes, retaining walls, garages, curtain walls, water deposits, water purification facilities and pipe penetrations into above-mentioned constructions.



ADVANTAGES AND FUNCTIONS

  • Easy and secure application
  • Good Swelling properties on contact with water
  • Good Elastic Properties
  • Permanent water resistance, no leaching
  • Non-Polluting, ecological user friendly system
  • Need no harding time

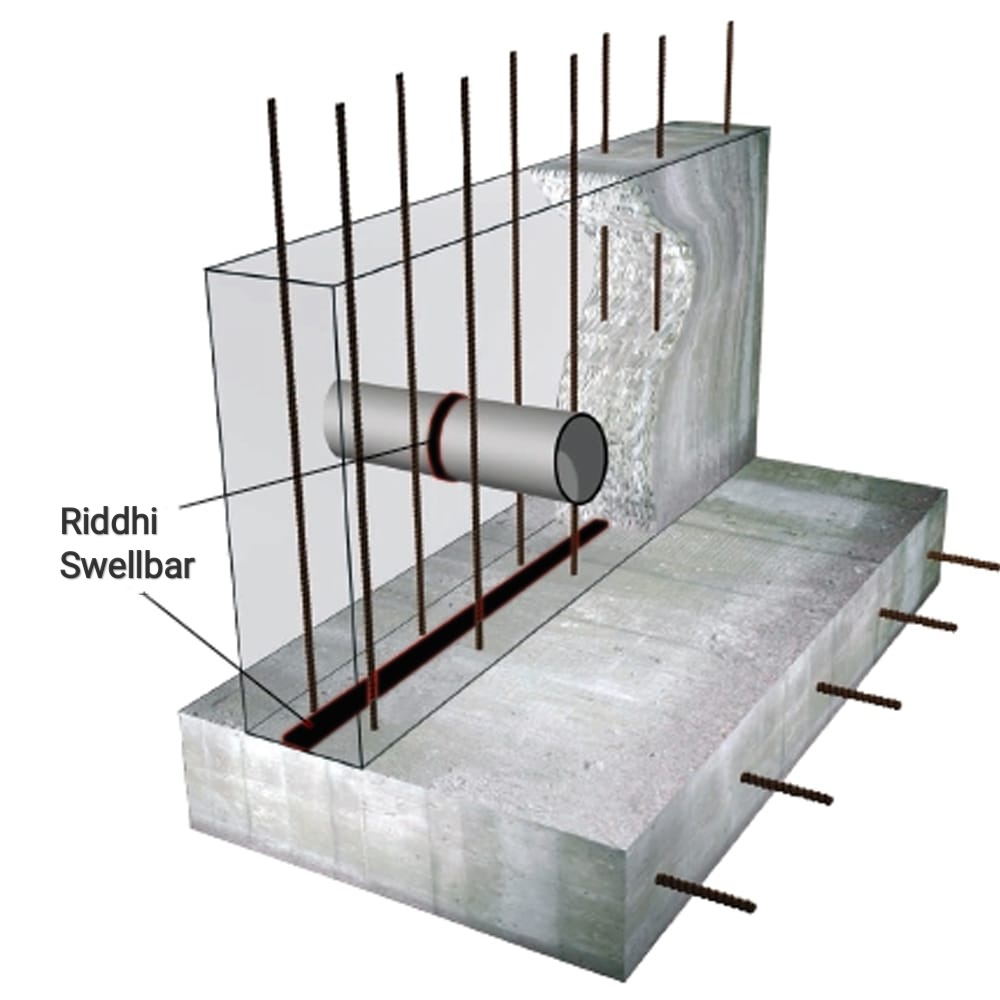

INSTALLATION OF SWELL BAR

  • Surface should be clean and dry.
  • Rubber can be bound to concrete surface by driving nails, hooks or adhesive.
  • Typically the product in installed at the centre and should have atleast 80mm cover.
  • The coil ends should overlap atleast 10cm side by side.
  • Keep away from moisture to avoide premature swelling.

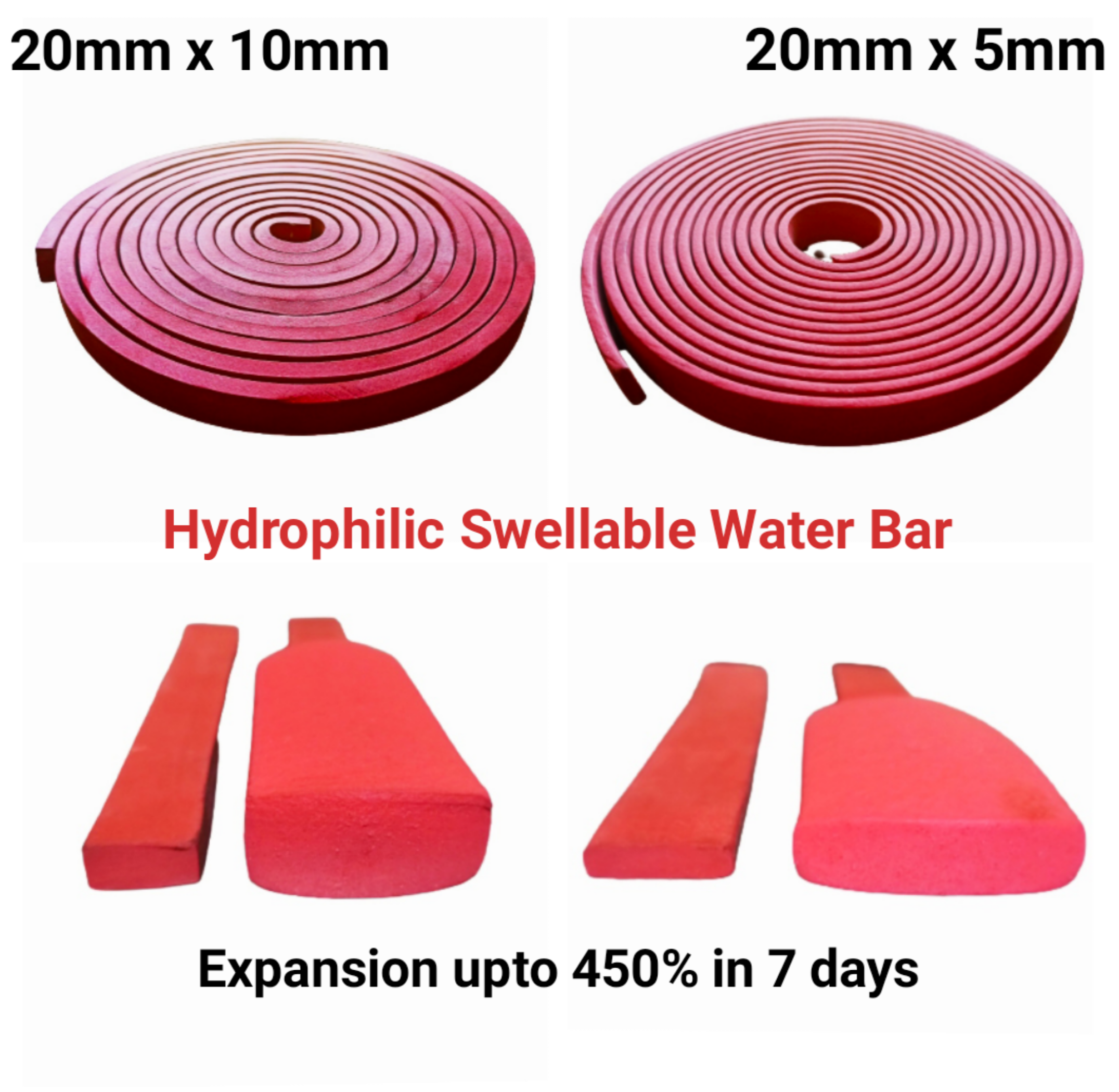

SIZES :

20mm x 5mm

25mm x 5mm

20mm x 10mm

25mm x 10mm

20mm x 20mm

25mm x 20mm &

25mm x 25mm
